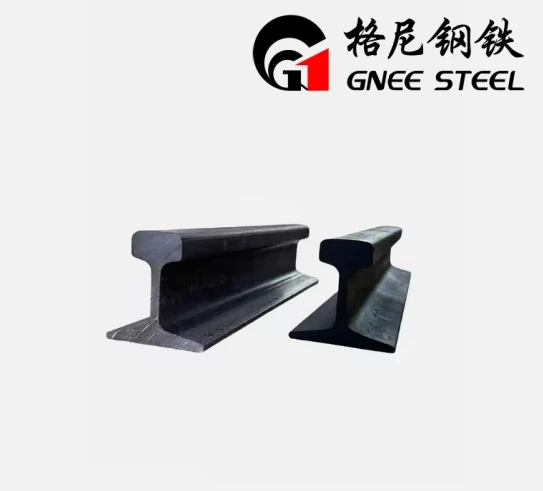

60-lb ASCE Rail
Lub 60-lb ASCE Rail yog cov khoom siv hluav taws xob teeb ua raws li cov qauv ntawm American Society of Civil Engineers (ASCE). Nws yog feem ntau siv nyob rau hauv railway infrastructure thoob plaws hauv lub US thiab nyob rau hauv cov cheeb tsam ua raws li ASCE specifications. Nyhav 60 phaus ib mev (kwv yees li 29.76 kilograms ib meter), lub tsheb ciav hlau no yog ib feem ntawm ntau yam khoom uas peb muab ntawm GNEE Rail. Peb muab Asmeskas tus qauv kev tsheb nqaj hlau, suav nrog 50-lb ASCE Rail, nrog rau lub teeb, hnyav, thiab crane ntsia nrog cov qauv sib txawv thiab cov lus qhia tshwj xeeb. Cov kev daws teeb meem kev cai thiab kev txhawb nqa muaj. Tiv tauj peb kom paub meej ntxiv!
60-lb ASCE Rail specification
Rail Hom: 60 ASCE Rail
Qauv Zauv: 6040
Nominal Nyhav: 60 lbs / yd
Standard Length: 20', 30', 33', 40'
Standard Drilling: 2-1/2 "x 5" nrog 15/16" dia. qhov
Splice Bar Ntev: 20 "
Splice Bar Nyhav: 13 lbs / pr nrog kho vajtse: 16 lbs / pr
Bolt: 3/4 "x 4"
60-lb ASCE Rail dimension
| Khoom npe | American Standard Rail | ||||||
| Txuj | ASTM A1 / AREMA | ||||||
| Qauv | DIMENSION | Qhov hnyav | Khoom siv | Ntev | |||
| A (mm) | B (mm) | C (mm) | t (mm) | (KG / M) | (m / PC) | ||
| UAS 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |
| UAS 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |
| UAS 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |
| UAS 50 | 54 | 98.4 | 98.4 | 11.11 | 24.855 | 700 | 6-12 |
| UAS 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
60-lb ASCE Rail Rhiav
