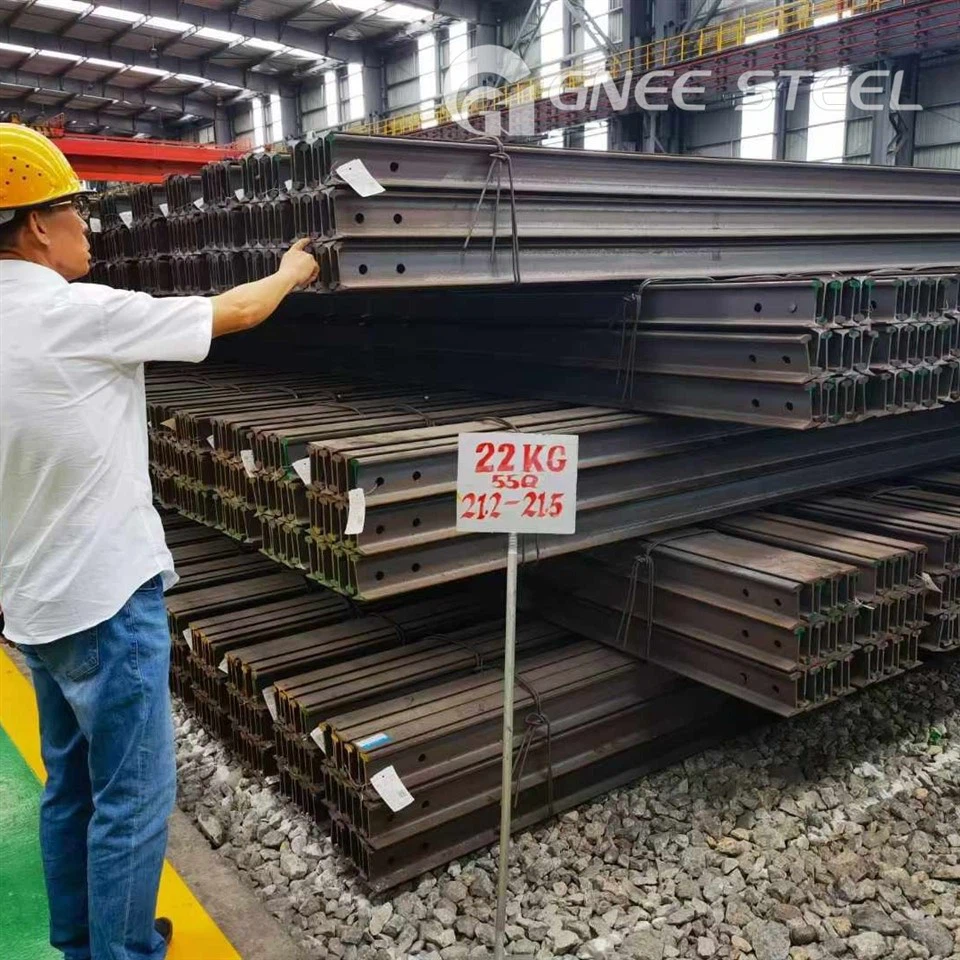

DIN Standard A100 Heavy Rail
DIN Standard Crane Rail yog ib hom kev tsheb ciav hlau tshwj xeeb uas tsim los ua raws li cov lus qhia nruj raws li lub koom haum German rau Standardization (DIN). Qhov kev tsheb ciav hlau no yog qhov tseem ceeb rau kev siv nyiaj siv ua haujlwm cranes thiab hauv pem teb-mounted cranes, feem ntau pom nyob rau hauv cov chaw xws li chaw nres nkoj, wharves, shipyards, thiab warehouses qhov hnyav lifting thiab tuav cov khoom yog tsim nyog. DIN Standard A100 Rail yog tsim tshwj xeeb kom tau raws li DIN Standard 536 thiab hnyav 74.3 kg ib meter. GNEE Rail yog ib qho kev ntseeg siab thiab cov kws tshaj lij ntawm cov hlau ntsia hlau, muab ntau yam ntawm DIN Standard Crane Rails, suav nrog A45, A55, A65, A75, A100, A120, thiab A150, txhua yam muaj nyob rau hauv ntau kom haum rau ntau yam kev xav tau. Yog tias koj muaj lus nug tshwj xeeb lossis xav tau cov ntaub ntawv ntxiv, thov tsis txhob yig tiv tauj peb txhua lub sijhawm!
DIN Standard A100 Heavy Rail specification
Hom: DIN Standard A100 Rail
Loj: DIN A45, A55, A65, A75, A100, A120, A150, thiab lwm yam
Khoom siv: ASSZ-1/U75V/U71Mn/1100/900A/700
Qhov hnyav: 74.3 kg / m
Ntev: 10-12m
Txheem: DIN 536-1-1991
DIN Standard A100 Heavy Rail Dimension
| Loj | Lub taub hau dav (mm) | Hauv qab dav (mm) | Rail Qhov siab (mm) | Web Thickness (mm) | Qhov hnyav (Kg / m) | Khoom siv | Ntev (m) |
| A55 | 55 | 150 | 65 | 31 | 31.8 | 700/900A/1100 | 10-12 |
| A65 | 65 | 175 | 75 | 38 | 43.1 | 700/900A/1100 | 10-12 |
| A75 | 75 | 200 | 85 | 45 | 56.2 | 700/900A/1100 | 10-12 |
| A100 | 100 | 200 | 95 | 60 | 74.3 | 700/900A/1100 | 10-12 |
DIN Standard A100 Heavy Rail Rhiav
