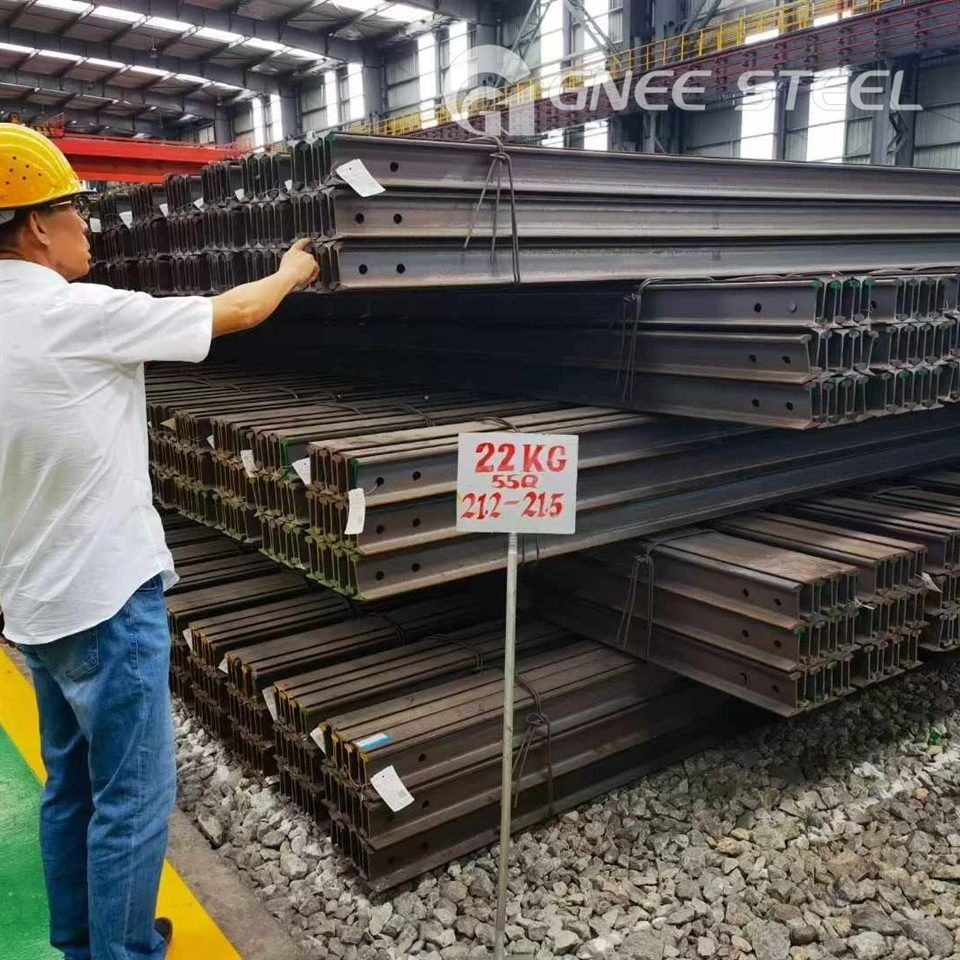

EN Standard 45E1 Rail
European txheem rails yog tsim nyob rau hauv raws li EN 13674 cov qauv, kom ntseeg tau tias uniformity nyob rau hauv kev nyab xeeb, kev ua tau zoo, thiab zoo nyob rau hauv ntau yam kev tsheb ciav hlau siv. Cov tsheb ciav hlau no tau siv dav rau cov neeg caij tsheb, thauj khoom, kev kub ceev, thiab kev siv tsheb thauj mus los hauv nroog, ua raws li cov lus qhia los ntawm European Committee for Standardization (CEN) thiab European Committee for Electrotechnical Standardization (CENELEC). EN Standard 45E1 Rail yog tsim nyob rau hauv EN 13674-1 thiab EN 13674-4, nrog ib tug luj ntawm 45.10 kg ib 'meter'. GNEE Rail yog ib tus neeg muab kev ntseeg siab thiab kev tshaj lij ntawm cov hlua hlau, muab ntau yam khoom, suav nrog 39E1 (BS80A), 45E3 (RN45), 46E2 (U33), 49E1 (S49), 49E5, thiab 54E1 (UIC54) rails. Tag nrho peb cov tsheb ciav hlau ua tau raws li cov qauv thoob ntiaj teb los xyuas kom meej qhov zoo. Xav tias dawb hu rau peb!
EN Standard 45E1 Rail specification
Loj: 45E1 steel rail
Ntev: 5m ~ 25m lossis lwm qhov ntev raws li cov neeg siv khoom xav tau
Khoom siv: R200, R260, R260MN, R350HT
Txheem: EN 13674-4
EN Standard 45E1 Rail Dimension
Hom kev tsheb ciav hlau: 45E1 (BS 90A)
Txheem: EN 13674-4
Lub taub hau (mm): 66.60
Qhov siab (mm): 142.8
Hauv qab (mm): 127.00
Web (mm): 13.80 Nws
Qhov hnyav (kg / m): 45.10
Ntev (m): 12-25
