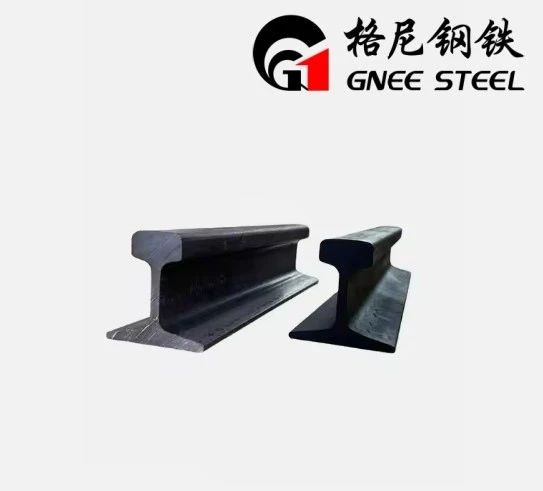

Suav Standard 6Kg Lub Teeb Rail
Suav Standard 6Kg Lub Teeb Rail yog tsim los rau kev siv lub teeb ua haujlwm, ua rau nws tsim nyog siv ntau yam kev thauj mus los thiab kev tsim kho. Qhov hnyav kwv yees li 6 kg ib 'meter', qhov kev tsheb ciav hlau no ua raws li Suav teb cov qauv, ua kom muaj kev ntseeg siab thiab zoo ib yam. GNEE Rail, peb tshwj xeeb hauv kev tsim Suav Txheem 6Kg Lub Teeb Rail, mob siab rau xa cov kev tsheb ciav hlau zoo tshaj plaws uas ua rau muaj ntau yam kev xav tau ntawm peb cov neeg siv khoom. Ntxiv nrog rau 6Kg Lub Teeb Rail, peb tsim ntau yam ntawm steel rails rau ntau yam kev siv. Peb qhov kev cog lus rau kev pabcuam tshwjxeeb thiab kev ua haujlwm zoo tshaj plaws ua kom koj tuaj yeem tso koj qhov kev txiav txim nrog kev ntseeg siab tiav!
Suav Standard 6Kg Lub Teeb Rail specification
| 6kg Rail Parameters | |||
| Hom Rail | Qhov hnyav (Kg / m) | Khoom siv | Ntev (m) |
| 6kg ua | 5.98 | Q235 | 6-12 |
| Lub taub hau dav (mm) | Hauv qab dav (mm) | Rail Qhov siab (mm) | Web Thickness |
| 25.4 | 50.8 | 50.8 | 4.76 |
Suav Standard 6Kg Lub Teeb Rail Dimension
| Loj | Lub taub hau dav (mm) | Hauv qab dav (mm) | Rail Qhov siab (mm) | Web Thickness (mm) | Qhov hnyav (Kg / m) | Khoom siv | Ntev (m) |
| 8kg ua | 25 | 54 | 65 | 7 | 8.42 | Q235 | 6-12 |
| 9kg ua | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | Q235 | 6-12 |
| 12kg ua | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235/55Q | 6-12 |
| 15kg ua | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235/55Q | 6-12 |
| 18kg ua | 40 | 80 | 90 | 10 | 18.06 | Q235/55Q | 6-12 |
| 22kg ua | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | Q235/55Q | 6-12 |
| 24kg ua | 51 | 92 | 107 | 10.9 | 24.46 | Q235/55Q | 6-12 |
| 30kg ua | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | Q235/55Q | 6-12 |
Suav Standard 6Kg Lub Teeb Rail Rhiav
