Lub hardness ntawm E- Clip Fasteners yog dab tsi?

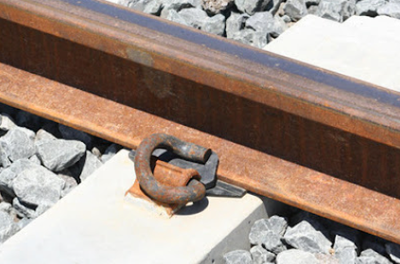

Rail clipfeem ntau yog siv nyob rau hauv railway fastening steel rails. Nws feem ntau yog siv nrog rau lwm yam kev tsheb ciav hlau, xws li tsheb ciav hlau, khi phaj, tsheb ciav hlau ncoo, thiab lwm yam. Rail clip ua haujlwm tau zoo thiab nws tau suav tias yog cov khoom siv tseem ceeb tshaj plaws uas tuaj yeem ruaj ntseg tias cov ntsia hlau tsis txav, khoov, lossis warp. Cov qauv tshwj xeeb ntawm elastic rail clip ua rau nws nqus cov kev cuam tshuam thiab co thaum lub tsheb dhau los.
E Hom Rail Elastic Clip yog ib qho ntawm cov kev sib tw khiav ceev hauv txoj kev tsheb ciav hlau nrawm, uas yog siv los muab kev sib tw khiav zoo thiab ruaj khov nyob rau hauv kev ua haujlwm hnyav tshaj plaws, yog li ncua lub neej ntawm kev tsheb ciav hlau. Feem ntau, rail elastic clip yog ua los ntawm forged caij nplooj ntoos hlav steel nrog ib txoj kab uas hla ntawm 18mm mus rau 23mm, lub luag haujlwm tseem ceeb ntawm kev tsheb ciav hlau clip yog txhawm rau txhawm rau txoj kev tsheb ciav hlau thiab steel rail ua ke. Lub tsheb ciav hlau clip tau suav tias yog ib txoj hauv kev zoo tshaj plaws los xyuas kom meej tias cov tsheb ciav hlau tsis txav, khoov, warp, thiab lwm yam.
| Lub npe | E- hom rail clip |
| Khoom siv | 60Si2MnA 60Si2CrA 55Si2Mn 38Si7 |
| Hardness | 44-48 HRC |
| Fatigue Lub Neej | rau Dia.18 yog 3 lab lub voj voog tsis tawg |
| rau Dia.20 yog 5 lab lub voj voog yam tsis muaj kev tawg | |
| Nto | dawb (oiled), Oxide dub, xim pleev xim lossis raws li tus neeg yuav tsum tau ua |
| Txuj | DIN17221, BS970, GB / T1222 |
E-Clip fasteners, tshwj xeeb tshaj yog hom kev tsheb ciav hlau (Pandrol/Vossloh), feem ntau muaj qhov tawv ntawm 44-48 Rockwell C (HRC), ua tiav los ntawm tshav kub- kho cov pa roj carbon caij nplooj ntoos hlav steel kom ruaj khov.

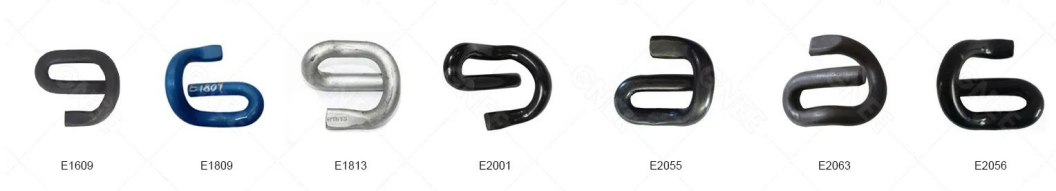

| Qauv | Txoj kab uas hla | Khoom siv | Hauv Siab | HRC | Qhov hnyav |
| E1609 | Ø 16 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.43kg / pcs |
| E1809 | Ø 20 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.61kg / pcs |
| E1813 | Ø 18 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.62kg / pcs |
| E2001 | Ø 20 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.80kg / hnab |
| E2009 | Ø 20 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.80kg / hnab |
| E2039 | Ø 20 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.80kg / hnab |
| E2007 | Ø 20 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.80kg / hnab |
| E2055 | Ø 20 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.80kg / hnab |
| E2056 | Ø 20 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.80kg / hnab |
| E2063 | Ø 20 mm | 60 Si2MnA | Ntau tshaj lossis sib npaug li 950kg | 44-48 | 0.80kg / hnab |
Cov ntsiab lus tseem ceeb ntawm E Rail Elastic Clip:
- Khoom siv:Feem ntau siab - carbon lossis caij nplooj ntoos hlav steel (xws li 60Si2Mn).
- Hardness Range:Feem ntau 44-48 HRC rau kev siv txoj kev tsheb ciav hlau, tab sis qee qhov tuaj yeem ncav cuag siab dua, mus txog 50 HRC lossis ntau dua nrog kev kho tshwj xeeb.
- Lub hom phiaj:Qhov hardness no ua kom lawv tuaj yeem tiv taus qhov tseem ceeb thiab deflections yam tsis muaj kev tawg, tseem ceeb heev rau kev ua kom muaj kev ruaj ntseg.
- Variations:General -lub hom phiaj E- clips tej zaum yuav siv ntau yam steels (carbon, alloy, stainless) thiab muaj qhov sib txawv hardness nyob ntawm cov khoom thiab yuav tsum tau corrosion kuj los yog lub zog.
Raws li OEM & OBM chaw tsim khoom,GNEE RAILmuaj peev xwm tsis tsuas yog ua tau ntau yam thoob ntiaj teb hom kev tsheb ciav hlau clips, xws li W Tension Clamp, e-Clip, Fast-Clip, SKL Tension Clamp, Nabla Hniav, thiab lwm yam, tab sis kuj kho cov khoom raws li peb cov neeg siv khoom tshwj xeeb.
