Khoom Taw Qhia

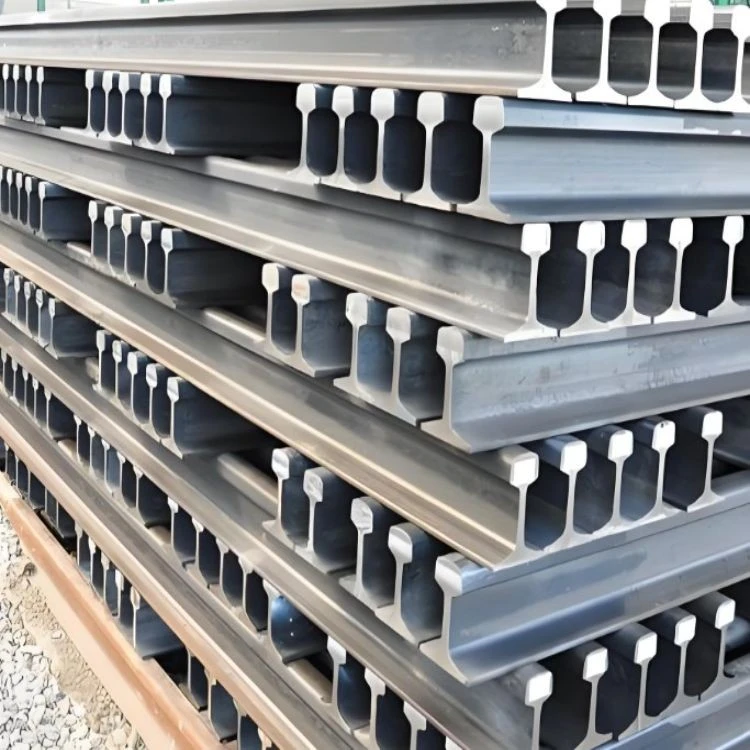

Quav LW hlau 605Kg Kev sib tw hnyav yog ua los ntawm U71MN siab carbon high manganese steel. Cov hlau no muaj lub zog siab thiab hnav tsis kam los ntawm cov pa roj carbon-messacese alloy. Cov pa roj carbon cov ntsiab lus muab txoj kev ntsia hlau zoo, thaum manganese cov ntsiab lus txhim kho kev hnav thiab cuam tshuam los ntawm kev ua haujlwm ntev ntawm cranes.
60kg thiab 75kg hnyav ntawm cov chaw uas haum rau thaj chaw uas muaj cov khoom lag luam loj thiab cov thawv ntim khoom loj thiab cov khoom lag luam nqa khoom thiab cov chaw thauj khoom. Lawv tuaj yeem muab cov khiav ua haujlwm ruaj khov rau cov cuab yeej xws li cranes kom ntseeg tau tias muaj kev nyab xeeb thiab kev ua haujlwm tau zoo.
Qu100 thiab qu120 crane rail yog siv rau cov haujlwm loj, dock hoisting ntim, thiab lwm yam. Lawv yog tus ntsia tshwj xeeb rau Gantry Cranes. Qu100 tuaj yeem thev 50-100} tons, thiab qu120 tuaj yeem dais 100-400 tons.
Cov Khoom Qhia Khoom Khoom
| Rail Hom | Qhov loj me (hli) | ||||||||
| qhov siab | Hauv qab dav | Taub Hau Dav | duav tob | ||||||
| Hnyav Rail | 60kg | 176 | 150 | 73 | 16.5 | ||||
| Rail Hom | Qhov loj me (hli) | ||||||||
| Ntu qhov siab | Hauv qab dav | Tsheb nqaj hlau dav | |||||||
| Hnyav Rail | 75kg | Xyoo 192mm | 150 hli | 75 hli | |||||
| ntaus | Qhov hnyav (hli) | khoom | ntev (m) | ||||
| Qu100 | 88.96 | U71mn | 12 | ||||
| Ntsia qhov siab (hli) | Hauv qab dav (hli) | Lub taub hau dav (hli) | Web tuab (hli) | ||||
| 150 | 150 | 100(108) | 38 | ||||
| ntaus | Qhov hnyav (hli) | khoom | ntev (m) | ||||
| Qua120 | 118.1 | U71mn | 12 | ||||
| Ntsia qhov siab (hli) | Hauv qab dav (hli) | Lub taub hau dav (hli) | Web tuab (hli) | ||||
| 170 | 170 | 120(129) | 44 | ||||
Khoom Ntim & Tus Me Nyuam
Tom qab sandblasting, cov ntsia tam sim ntawd coated nrog anti-xeb roj, thiab tom qab ntawd kho tshuab qhwv nrog}}}. 15mm tuab PE tiv thaiv zaj duab xis. Cov txheej txheej sab nraud yog qhwv nrog cov ntawv sau dej noo-pov thawj, thiab cov nqaws yog tsau nrog cov xaim xaim. Cov Strapping system siv 6 galvanized steel xaim nrog txoj kab uas hla ntawm 6 hli, thiab Ratchet-hom Tensioner yog siv los xyuas kom firmness. Yas tiv thaiv cov tes tsho yog ntxiv rau ob qho kawg ntawm txhua pawg ntawm cov ntsia hlau kom tiv thaiv kev puas tsuaj rau qhov kawg thaum nqa khoom.
Gnee Rail yog ib lub tuam txhab ua lag luam tawm txawv teb chaws uas muab kev daws teeb meem rau GB hnyav Rail. Peb muab kev sib txuas ua ke zoo los muab cov neeg siv khoom nrog cov kev pabcuam ntawm cov kev pabcuam los ntawm cov khoom xaiv, kev sib tham ua haujlwm rau kev thauj khoom thiab faib. Lub tuam txhab tsom rau kev txhim kho kom ruaj khov thiab nquag ua kom zoo rau cov qauv kev tiv thaiv thoob ntiaj teb, kev lag luam thiab kev khwv nyiaj txiag. Nrog pab neeg tshaj lij thiab cov kev paub nplua nuj, peb tau cog lus los ua tus khub uas ntseeg siab tshaj plaws ntawm peb cov neeg siv khoom.
Cim npe nrov: GB 60KG 75KG Qu120 Chaw Rail Wharf, Tuam Tshoj GB 60KG 75KG Qu120 Chaw Rail Manufacturers, lwm tus neeg, Hoobkas
