Suav Standard 24Kg Lub Teeb Rail
Lub teeb rail yog ib qho tseem ceeb ntawm txoj kev tsheb ciav hlau, muab lub teeb yuag thiab compact lwm txoj rau kev tsheb ciav hlau hnyav. Nws txoj kev tsim kho kom yooj yim tuav thiab teeb tsa, ua rau nws haum rau ntau yam kev siv. Tsis tas li ntawd, kev tsim kho ntawm cov tsheb ciav hlau ruaj khov ua kom muaj kev ua haujlwm ntev ntev nrog kev saib xyuas tsawg, uas ua rau nws muaj txiaj ntsig zoo.
Tuam Tshoj Standard 24Kg Lub Teeb Rail yog tshwj xeeb rau cov kab tsheb thauj mus los ib ntus thiab lub teeb locomotive lem, ua rau nws zoo tagnrho rau cov chaw tsim kho, chaw tsim khoom, thiab kev ua haujlwm tsuas. GNEE Rail muaj ntau txoj kev xaiv zoo, suav nrog cov tsheb ciav hlau zoo li 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, thiab 30kg steel rails. Peb kuj muab cov tsheb ciav hlau hnyav thiab crane rails nyob rau hauv ntau yam specifications thiab qauv. Customization xaiv muaj kom haum rau koj cov kev xav tau tshwj xeeb. Tsis txhob yig tiv tauj peb kom paub meej ntxiv!
Suav Standard 24Kg Lub Teeb Rail specification
Hom: Suav Standard 24Kg Lub Teeb Rail
Khoom siv: Q235 / Q55
Qhov hnyav: 24.95KG / M
Ntev: 6-12m
Txheem: GB11264-89/YB222-63
Suav Standard 24Kg Lub Teeb Rail Dimension
| 24kg Rail Parameters | |||
| Hom Rail | Qhov hnyav (Kg / m) | Khoom siv | Ntev (m) |
| 24kg ua | 24.46 | Q235/55Q | 6-12 |
| Lub taub hau dav (mm) | Hauv qab dav (mm) | Rail Qhov siab (mm) | Web Thickness |
| 51 | 92 | 107 | 10.9 |

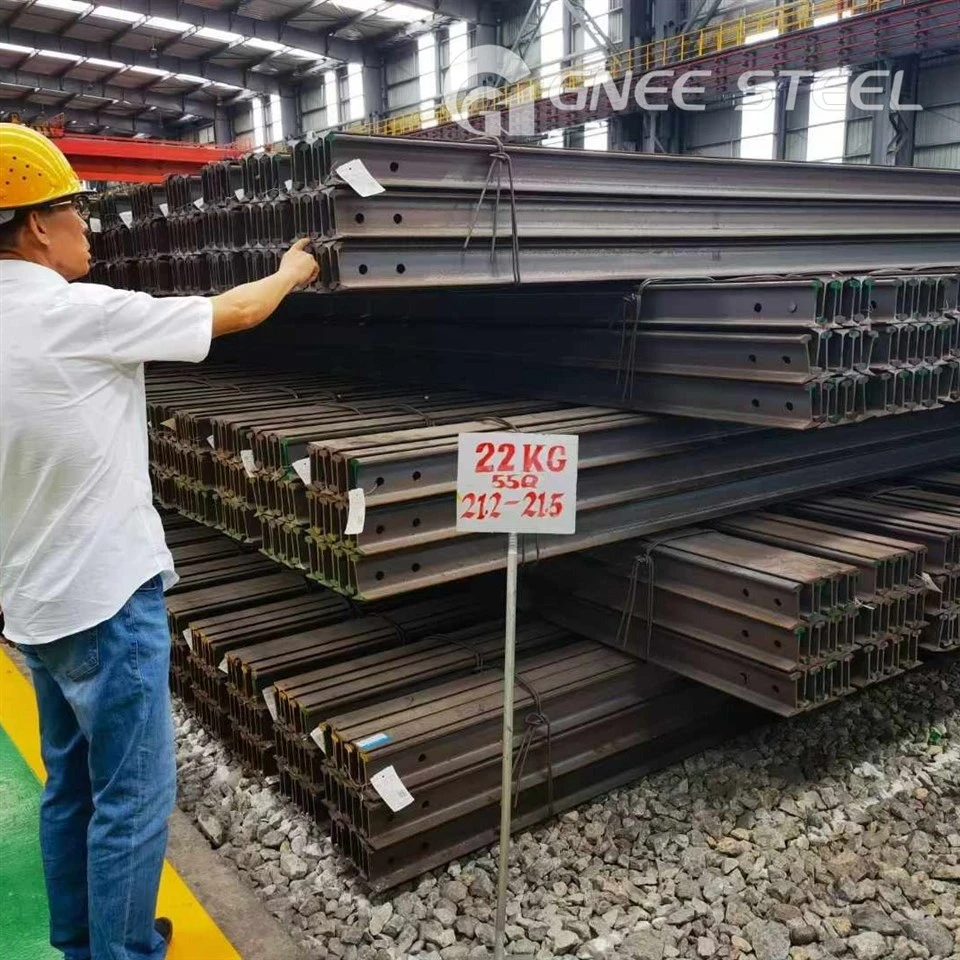

Suav Standard 24Kg Lub Teeb Rail Rhiav
