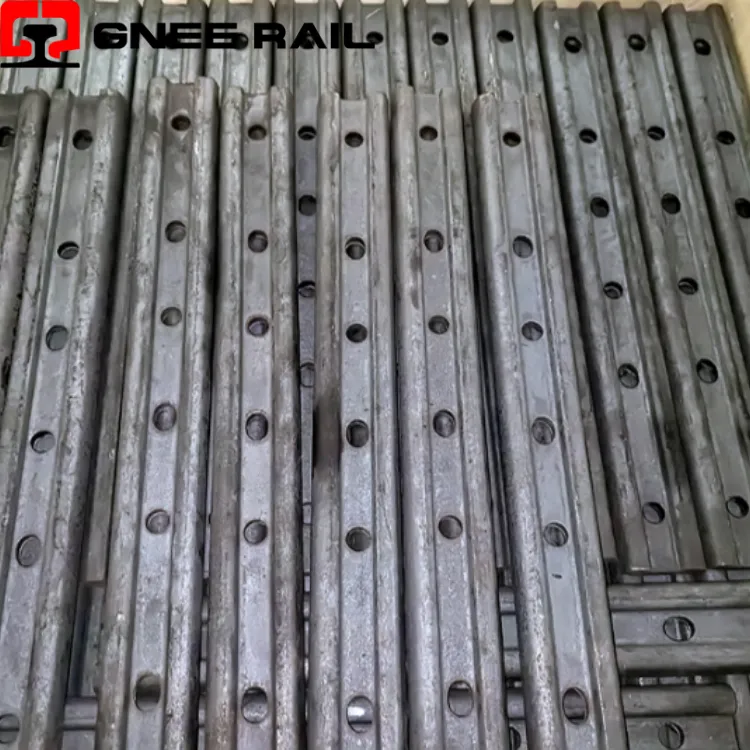

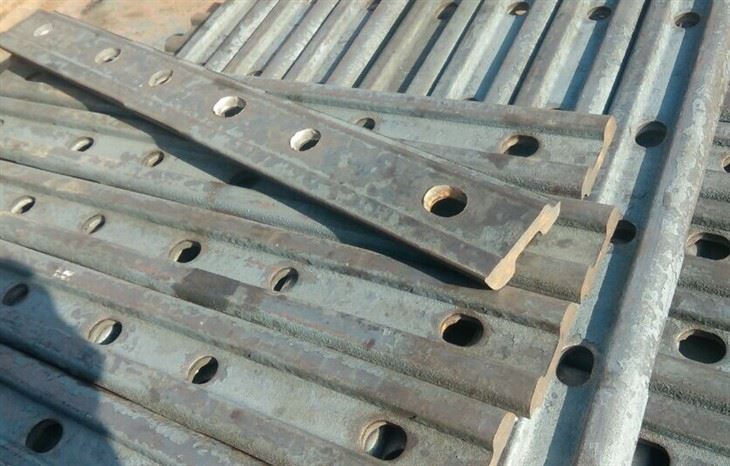

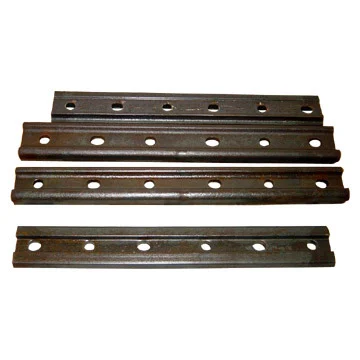

Railway Fish Plate, tseem hu ua rail pob qij txha los yog splice tuav, Railroad fishplates, yog hlau tuav welded rau hauv ob txoj hlua los koom ua ke. Rail pob qij txha yog ib qho tseem ceeb ntawm kev tsim kho tsheb ciav hlau. Raws li kev paub dhau los, cov khoom siv hluav taws xob zoo tshaj plaws tuaj yeem txo cov kev cuam tshuam ntawm cov log ntawm txoj kev tsheb ciav hlau sib koom ua ke, ua kom muaj kev ruaj ntseg thiab txuas ntxiv ntawm cov tsheb ciav hlau hla mus los ntawm kev sib koom ua ke, thiab xyuas kom muaj kev nyab xeeb ntawm kev thauj mus los.
GNEE tuaj yeem muab kev pabcuam ib-nres xws li kev tsim kho, tsim khoom thiab xa tawm cov kev pabcuam rau txhua hom ntses ntses. Nws yog tus tsim khoom ntawm railway infrastructure kev tsim kho tej yaam num nyob rau hauv 23 lub teb chaws nyob rau hauv tsev thiab txawv teb chaws, xws li Tuam Tshoj Railway, Tuam Tshoj Railway Siv, thiab Tuam Tshoj Civil Engineering siv. Peb muab ntau tshaj 50 hom qauv thiab tsis-tus qauv ntses phaj pwm kom tau raws li qhov xav tau ntawm cov neeg siv khoom thoob ntiaj teb.
GNEE xa tawm yam tsawg kawg yog 500 ntim ib xyoos. Peb tuaj yeem muab ntau yam kev sib tw ua haujlwm zoo raws li cov neeg siv khoom xav tau. Peb cov pob qij txha rail ua raws li cov qauv thoob ntiaj teb, xws li BS, UIC, GB, AREMA thiab DIN, thiab lwm yam, thiab tuaj yeem ua raws li cov neeg siv khoom xav tau. Peb cov kws tshaj lij muaj kev paub dhau los hauv kev tsim thiab tsim khoom ntawm ntau hom kev sib koom ua ke ntawm Suav thiab txawv teb chaws, tau ua tiav cov qauv tseem ceeb ntawm cov teb chaws sib txawv, thiab tuaj yeem ua qhov tsim nyog thiab kev hloov kho.
GNEE tuaj yeem tsim cov pob qij txha rail raws li hauv qab no:
|
Standard (raws li lub teb chaws) |
Loj |
|
GB txheem (Tuam Tshoj) |
43KG, 50KG, 60KG, 75KG |
|
AREMA txuj (USA) |
115RE, 119RE, 132/136RE, 141RE, 100-8, 122 AB |
|
AS Standard (Australia) |
31KG, 41/47KG, 50KG, 53KG, 60KG, |
|
BS txuj (UK) |
BS75R, BS80A, BS90A, BS100A, BS113A |
|
UIC (International Union of Railways) tus qauv |
UIC54, UA 60 |
|
Brazilian tus qauv (Brazil) |
TJ57, TJ ASCE 90, TJ UIC60 |
|
Peruvian tus qauv (Peru) |
75 LBS ASCE, 75 LBS BSS, 80 LBS ASCE, TJ BS80A |
|
African tus qauv (Africa) |
85LB, 85LB-80LB |
Nrov Railway Fish Plate Khoom raws li hauv qab no:
132RE Rwb thaiv tsev Rail Ntses Phaj
• 6 qhov 36 "muaj
• 4 qhov 24 "muaj
• Lub qhov ntses phaj tuaj yeem raug xuas los yog drilled.
• Loj: rwb thaiv tsev 132RE
• Khoom siv: 50 # steel lossis 55 # steel
115-119RE, 132-136RE
• Txuj: raws li AREMA2010
• Ntev: 6 qhov 36 nti lossis 4 qhov 24inch nrog puag ncig lossis oval qhov raws li cov neeg siv khoom xav tau
• Khoom siv: nruab nrab carbon steel lossis micro alloy steel
• Qhov ntawm xuas nrig ntaus lossis drilling muaj.
133RE Standard Railroad fishplates:
• Raws li AREMA 2010
• Khoom siv: nruab nrab carbon steel 45 # lossis 50 # lossis 55 # steel
• 6 qhov 36 "los yog 4 qhov 24" muaj
• Qhov ntawm Ntses phaj tuaj yeem xuas nrig los yog drilled, ntawm puag ncig lossis oval duab, tsis muaj npoo ntse.
UIC54 & UIC60 daim phiaj
• Standard: UIC864-4, UIC864-8
• Chav ntsuas qhov hnyav: UIC54: 54.43kg / m; UIC60: 60.34kg / m
• Khoom siv: 50 # lossis 55 # steel
African Rail Joint Bar
• Standard: African 1882-73B
• Qauv: 70LB, 80LB, 85LB, 85LB-80LB
• Qhov taub: 7/8 '' / 1 1/16 '', 1-1/16''
• Khoom siv: Hlau Qib55 #
Latin American Rail Fishplate
• Standard: TJ Standard
• Khoom siv: Hlau Qib 55 #
• Model Number: TJ37 TJ45 TJ57 TJ60 TJ ASCE90 TJ UIC60 TJ BS80A
• Qhov taub: 25.4&31.8mm, 27&35.7mm, 28.99&35.72mm, 36&27.8mm, thiab lwm yam
