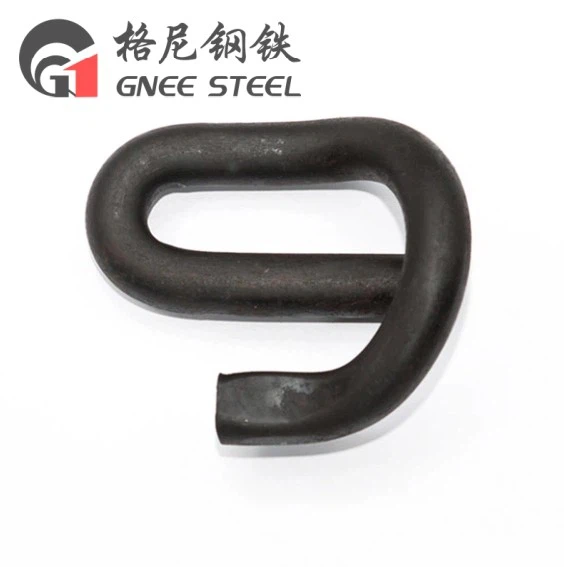

Rail Clip E1609
Lub E1609 rail clip yog tsim los kom ruaj ntseg railway lem mus rau lawv lub hauv paus daim hlau los yog ties, kom ruaj khov thiab alignment.Peb tshwj xeeb hauv kev tsim cov E1609 rail clip thiab muaj kev xaiv customization kom tau raws li koj cov kev xav tau tshwj xeeb. Peb yog cov chaw tsim khoom ntawm kev tsheb ciav hlau cov khoom, ua ntau yam khoom xws li rail fishplates, elastic rail clips, spikes, thiab rails. Tag nrho peb cov khoom yog customizable thiab ua raws li cov qauv thoob ntiaj teb. Thov koj xav tiv tauj peb kom paub ntau ntxiv.
Rail Clip E1609 specification
Yam Khoom: E1609
Hom: E rail clip, elastic rail clip
Qauv: GNEE rail
Lwm lub npe: Elastic railroad clip, railway fastener clip, railway clip
Khoom siv: 60Si2Mn lossis raws li cov neeg siv khoom xav tau
Txoj kab uas hla: Ø 18 mm
Clip Length: 93 ± 3 hli
Qhov hnyav: 0.43 kg
Hardness: 44-48 HRC
Kev Ua Haujlwm Siab: Ntau dua lossis sib npaug rau 9.5 kN
Fatigue Test: 5,000,000 zaug tsis so
Lub teb chaws: Southeast Asia
Rail Clip E1609 technical tsis
| Yam khoom | Khoom siv | Txoj kab uas hla | Qhov hnyav | HRC | Hauv siab | Kev qaug zog | Export cheeb tsam |
| Hom III | 60 Si2MnA | ø18 | 0.80kg | 44-48 | Ntau dua lossis sib npaug li 950kgf | 5000000 sij hawm tsis muaj tawg |
Tebchaws Asmeskas Spain Brazil |
| 1809 | 60 Si2MnA | ø18 | 0.63 kg | 44-48 | Ntau dua lossis sib npaug li 950kgf | Southeast Asia | |
| e1609 | 60 Si2MnA | ø16 | 0.43 kg | 44-48 | Ntau dua lossis sib npaug li 950kgf | Teb chaws Europe |
Rail Clip E1609 daim ntawv thov
