Vim li cas nws thiaj li muaj kev nyab xeeb rau siv rail fishplate?
Piv txwv li Indian fishplate, 1 daim ntawm ntses phaj yam tsawg kawg nkaus tensile lub zog yog 5.58-6.51 t / cm2 thiab 20% elongation. Fishplate tau tsim kom muaj tib lub zog ntawm steel rail seem. Ib feem ntawm txoj kev tsheb ciav hlau yog kwv yees li 55% ntawm txoj kev tsheb ciav hlau, yog li 2 daim phaj ntses muaj zog dua li cov hlau rail profile.
GNEE yog cov chaw tsim khoom lag luam uas muab cov kev tsheb ciav hlau zoo tshaj plaws nrog rau cov ntses daim hlau, cov hlua tsheb ciav hlau, tsheb ciav hlau spikes thiab lwm yam fasteners. Peb lub tuam txhab xa tawm mus rau 200 lub teb chaws thiab cheeb tsam thiab tau txais lub koob npe nrov. Peb tsuas yog tsim cov nram qab no hom ntses phaj, hom ntses phaj, joggled ntses phaj thiab compromise ntses daim hlau, insulating ntses daim hlau.

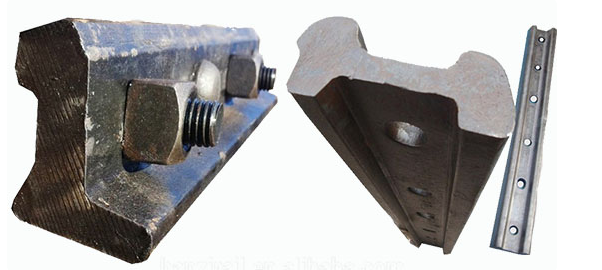

1, Hom ntses phaj
Peb muab 4 holed los yog 6 holed rail ntses daim hlau kom haum 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE , 132 RE, 50R rails, thiab lwm yam.
Cov phiaj xwm railway ntses tuaj yeem muab faib ua plaub qhov thiab rau lub qhov. Cov ntaub ntawv ntawm kev tsheb nqaj hlau ntses daim hlau tuaj yeem muab faib ua nodular cam khwb cia hlau, Q235 dov steel, forging steel thiab lwm yam. Feem ntau, railway ntses phaj ntau lawm siv nruab nrab carbon steel thiab siab carbon steel raws li raw khoom. Tsis tas li ntawd, peb kuj tuaj yeem tsim cov khoom sib xyaw railway ntses phaj, cam khwb cia hlau railway fishplate rail sib koom ua ke thiab cam khwb cia hlau railway ntses phaj.
Txoj kev taug qab ntses phaj yog hom ntau tshaj plaws, uas yog siv dav hauv ntau hom kev sib tw. Nws feem ntau yog ua los ntawm nruab nrab carbon steel thiab siab carbon steel. Thiab muaj ob hom ntses phaj, plaub qhov ib txwm ntses daim hlau thiab rau lub qhov ib txwm ntses daim hlau. Cov ntses phaj hauv kev tsheb ciav hlau yog siv ua ke nrog cov ntses bolt. Cov ntses ntsia liaj qhov rooj nkag mus rau hauv lub qhov elliptical, thiab lub protrusion ntawm qhov kawg ntawm lub bolt coincides nrog lub elliptical qhov, ua si lub luag hauj lwm ntawm fastening. Lub phaj ntses ib txwm muaj cov qauv yooj yim tshaj plaws ntawm txhua yam ntawm lawv, uas tau siv dav hauv kev tsheb ciav hlau.
Ntses daim hlau yog siv nyob rau hauv railway lem
2, Joggled ntses phaj
Joggled rail fishplateyog siv thaum txoj kev tsheb ciav hlau sib koom ua ke los yog kev kho thaum muaj xwm txheej ceev, nws muaj cov duab tshwj xeeb kom tawm hauv qhov chaw rau vuam steel rails nrog kev puas tsuaj. Feem ntau yog siv rau hauv seamless steel rails, nws yog ib qho tseem ceeb hauv kev ua kom txoj kev tsheb ciav hlau muaj kev nyab xeeb thaum muaj kev phom sij zais.
Joggled ntses phaj yog lwm hom ntses phaj, uas muaj kev ua haujlwm zoo ib yam li cov ntses phaj. Lub phaj ntses joggled yog txawv nyob rau hauv cov duab los ntawm ib txwm ntses phaj. nws yog ib tug tshwj xeeb forged ntses phaj uas muaj xws li ib tug ntses phaj thiab ib tug bulge seem nyob rau hauv nruab nrab. Lub joggled ntses phaj tuaj yeem ua tau zoo clamp thiab kho cov welded steel rail, cia lub tsheb ciav hlau hla txoj kev tsheb ciav hlau zoo. Nws muaj cov yam ntxwv ntawm kev tsheb nqaj hlau deformation, ntau yam kev siv, yooj yim txij nkawm, durability, yooj yim installation, thiab zoo heev qaug zog tiv thaiv. txhim kho qhov flatness ntawm cov tsheb ciav hlau hla.
Cov khoom no yog tshwj xeeb forged ntses phaj. Nws yog tsim rau kev kho ib ntus ntawm tawg welded rail pob qij txha nrog clamp los ua ke kom haum rau ntau yam kev tsheb nqaj hlau. Siv los ua ib qho xwm txheej ceev, joggled ntses phaj ua kom sai thiab kho ib ntus, tso cai txuas ntxiv mus los ntawm ntu ntawm txoj kab txo qis. AGICO ntau lawm muaj peev xwm tuaj yeem ua tau raws li koj qhov kev txiav txim siab sai nrog rau lub sijhawm luv luv.
| Daim ntawv thov ntses phaj | |
|---|---|
| Rail pob qij txha rau lub teeb rail | 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg thiab 30kg |
| Rail pob qij txha rau hnyav rail | 38kg, 43kg, 50kg thiab 60kg |
| Rail pob qij txha rau crane rail | QU70, QU80, QU100 thiab QU120 |
Joggled Rail Fishplate
3, Kev sib cog lus ntses daim hlau
Compromise rail ntses daim hlau yog siv los txuas cov kab txawv txav, uas muaj ob qhov sib cais- ib thooj ntsia rau sab nraud ntawm cov ntsia hlau, lwm qhov nruab rau hauv cov ntsia hlau. Compromise railway ntses daim hlau yog tshwj xeeb uas tsim los smoothly phim lub gauge-lub taub hau lub ntsej muag ntawm ob rails, ib tug teeb compromise railroad ntses daim hlau yog muaj plaub tuav.
Kev cuam tshuam kev sib koom ua ke thiab cov kev sib txuas ntawm cov tsheb ciav hlau muaj kev siv dav hauv cov kab tsheb ciav hlau, xws li kev sib txuas ntawm txoj kev tsheb ciav hlau hloov thiab txoj kab tseem ceeb, lwm yam kev sib txuas ntawm kev tsheb ciav hlau. Feem ntau, kev sib koom ua ke bar yog siv rau 50kg thiab 60kg, 43kg thiab 50kg rail lem.
COMMON JOINT BARS muaj nyob ntawm GNEE
| Tsis muaj. | Hom | Khoom siv | Qhov hnyav (kg / pc) | Txuj |
| 1 | 136 RE 36 '' | 55# | 26.72 | AREMA |
| 2 | 115 RE 36 '' | 24.5 | ||
| 3 | 136 RE 24 '' | 22.3 | ||
| 4 | 115 RE 24 '' | 20.4 | ||
| 5 | 100-8 36'' | 15.6 | ||
| 6 | BS80 ua | 55# | 10.2 | BS |
| 7 | BS 80 R | 10.2 | ||
| 8 | BS 75 A | 8.86 | ||
| 9 | BS 90 A | 13.1 | ||
| 10 | BS100A | 15 | ||
| 11 | UAS 50 | 55# | 18 | UIC |
| 12 | UAS 54 | 22.8 | ||
| 13 | UAS 60 | 27.4 | ||
| 14 | P65 | 55# | 29.7 | GOST |
| 15 | Rwb thaiv tsev 60 | 23.2 |
COMPROMISE JOINT BARS muaj nyob ntawm GNEE
| Tsis muaj. | Hom | Khoom siv | Chav ntsuas hnyav (kg / hnab) |
Lus ceeb toom |
| 1 | 136RE-115RE | 55# | 27.5 | 4 pcs ib set |
| 2 | 136RE-132RE | 55# | 26.7 | 2 pcs rau ib teev |
| 3 | 141RE-136RE | 55# | 26.7 | 2 pcs rau ib teev |
| 4 | 141RE-132RE | 55# | 26.7 | 2 pcs rau ib teev |
| 5 | 100-8 ntawm 1/8〞 ntsug tawm | 55# | 15.6 | 2 pcs rau ib teev |
| 6 | 100-8 ntawm 3/8〞 ntsug tawm | 55# | 15.6 | 2 pcs rau ib teev |
| 7 | UIC60-P50 | 55# | 23 | 2 pcs rau ib teev |
| 8 | BS80A-115RE | 55# | 20 | 2 pcs rau ib teev |
| 9 | UIC60 thermit welded sib koom | 55# | 18 | 2 pcs rau ib teev |
| Cov khoom thiab bar ntev tuaj yeem kho raws li tus neeg yuav khoom thov. | ||||
4, Insulated Railway Fish Plate
Peb kuj tuaj yeem muab cov khoom siv insulated railway ntses phaj. Raws li nws lub npe, insulated railway pob qij txha yog ua los ntawm cov khoom siv insulating, ib yam tshiab ntawm cov khoom muaj zog sib xyaw ua ke. Nws muaj cov yam ntxwv ntawm corrosion resistant, xeb tiv thaiv, ultraviolet-pov thawj, tsis-ua thiab tsis-magnetic. Dab tsi ntxiv, insulated railway ntses phaj yog cov khoom siv thermosetting thiab tsis tuaj yeem rov ua dua, yog li nws yog burglarproof.
Insulated rail pob qij txha yog bolted rail pob qij txha uas muaj cov ntaub ntawv rwb thaiv tsev cov ntaub ntawv qhwv nyob ib ncig ntawm txhua qhov chaw tiv tauj rau hluav taws xob cais lawv. Insulated rail ntses daim hlau yog tag nrho ntawm cov ntaub ntawv insulating. Feem ntau ntawm cov insulated khiav fishplates yog ua los ntawm cov ntaub ntawv muaj zog sib xyaw. Lawv muaj cov yam ntxwv ntawm corrosion kuj, xeb kuj, UV kuj, tsis-conductive kev ua tau zoo thiab tsis-magnetic kev ua tau zoo. Tsis tas li ntawd, lawv yuav tsum tau ua los ntawm cov khoom siv thermosetting thiab tsis tuaj yeem ua tiav ob zaug. Yog li ntawd lawv tsis ntshai tub sab.
Hom ntawm cov insulated rail pob qij txha
Hom kev sib txuas ntawm cov hlua hluav taws xob tuaj yeem ua tau raws li cov hlau sib txawv:
A. Lub teeb rail: 8kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg
B. Heavy rail: 38kg, 43kg, 50kg, 60kg, 75kg
C. Lifting rail oblique sib koom: 43kg, 50kg, 70kg, 80kg, 100kg, 120kg
Qauv thiab theoretical hnyav ntawm cov insulated rail pob qij txha
9KG hais txog 0.81kg; 12KG yog hais txog 1.39 kg; 15KG hais txog 2.20 kg; 22KG yog hais txog 3.80 kg; 30KG yog hais txog 5.54 kg.
Insulated Railway Fish Plate
