Nyob rau hauv lub railway kab system,rail clips, feem ntau hu ua elastic rail clips, railway clips. Dab tsi yog kev ua haujlwm ntawm rail clips? Los ntawm kev khoov deformation ntawm elastic rail clips, buckle siab ua rau txoj kev khiav, uas tuaj yeem ua kom ntseeg tau qhov kev sib txuas ntawm txoj kev tsheb ciav hlau.
GNEE RAILkhoom siv E rail clips, SKL rail clips, Nabla hom tsheb ciav hlau clips, KPO rail clips, thiab lwm yam customized hom rail clips nrog kev sis tw nqi thiab Hoobkas tus me nyuam, yog tias koj muaj kev xav tau, thov koj xav tias dawb rautiv tauj peb!
FAQ Txog Rail Elastic Clip los ntawm GNEE RAIL
Yuav ua li cas peb tsim rail clips?
GNEE RAIL tsim cov rail clips raws li cov txheej txheem scientific ntawm rail clip ntau lawm nruj me ntsis thiab cov txheej txheem tshwj xeeb yog raws li nram no:
Raw khoom: Premium qib caij nplooj ntoos hlav steel los ntawm ib tug txhim khu kev qha thiab certified ntev lub sij hawm tsim khoom.
- Shearing:Lub caij nplooj ntoos hlav steel bar yuav tsum tau sheared raws li qhov ntev xav tau.
- Cua sov:rau forging kub (950-1000 degrees Celsius), tab sis dhau cua sov yuav tsum tau zam kom tsis txhob decarburization.
- Kev tsim:Cov cua kub zoo yog hloov mus rau lub zog xovxwm rau forging.
- Hardening:Lub forged rail clips raug xa mus rau quenching tank.
Dimensional raug thiab quench hardness ntawm rail clips raug kuaj ua ntej tempering.
- Tempering:Cov rail clips yog tempered ntawm txog 350 Celsius kom ua tau raws li qhov tsim nyog toughness nyob rau hauv lub caij nplooj ntoos hlav.
- Kev tshuaj xyuas:Cov khoom raug kuaj xyuas kom meej raws li Tuam Tshoj CRCC thiab cov neeg siv khoom xav tau kev qhia tshwj xeeb thiab tsim.
- Ntim:Clips tuaj yeem ntim rau hauv hnab woven lossis raws li tus neeg yuav tsum tau ua.
Kev tshuaj xyuas thaum lub sijhawm tsim khoom
Kev tswj xyuas zoo ntawm GNEE RAIL clips li cas?
Peb muaj tag nrho cov txheej txheem nruj tswj hwm los tsim cov tsheb ciav hlau clips, los ntawm cov khoom siv raw khoom mus txog rau daim ntawv thov clip tiav. Muaj ib pab neeg soj ntsuam cov kws tshaj lij los xyuas txog txhua tus txheej txheem ntawm cov kab ntau lawm thiab txhua ob teev tawm ntawm kab.

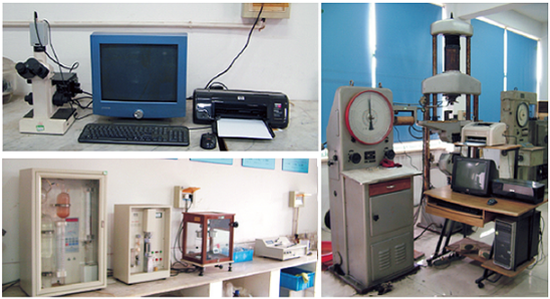

Kev tshuaj xyuas tshuab rau kev ua tiav rail clips
GNEE siv dab tsi los tshuaj xyuas cov kev tsheb ciav hlau tiav?
- Brinell Hardness Tester
- Carbon thiab Sulfur Analyzer
- Rockwell Hardness Tshuab los kuaj cov khoom siv hlau
- Automatic Impact Testing Tshuab
- Metallographic Microscope
- Tsis Siv Neeg Siab -Speed Analyzer
- Fatigue Testing Tshuab
- Metallographic Specimen Polishing Tshuab
- Metallographic Specimen Pointing Tshuab
GNEE ua dab tsi tshaj Pollution Control thiab Energy Conservation?
Ntawm peb lub hauv paus tsim rau kev tsheb ciav hlau clips, kev tswj cov pa phem thiab kev txuag hluav taws xob yog qhov teeb meem tseem ceeb thaum lub sij hawm tsim thiab kev tsim kho ntawm lub Hoobkas kom txo tau lub suab nrov ntawm rauj thiab cov roj hluav taws xob tua hluav taws thiab txo cov pa taws. Preheating lub inlet cua siv nyob rau hauv baring ntawm Diesel yuav txuag tau ntau lub zog thiab.

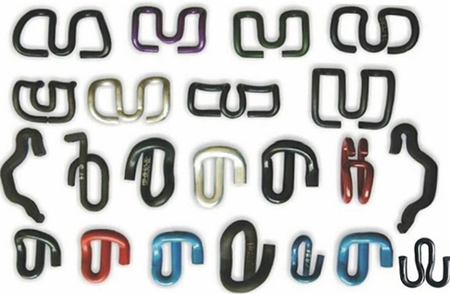

Cov hom tseem ceeb ntawm rail elastic clip los ntawm GNEE RAIL
| Qauv | Txoj kab uas hla | Qhov hnyav | Khoom siv |
| Hom III | Ø18 | 0.80kg / hnab | 60 Si2MnA |
| E1609 | Ø16 | 0.43 kg / pcs | 60 Si2MnA |
| E1809 | Ø20 | 0.61kg / pc | 60 Si2MnA |
| E1813 | Ø18 | 0.62kg / pcs | 60 Si2MnA |
| E2001 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2007 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2009 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2039 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2055 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2056 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2063 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| PR85 Rail Clip | Ø13 | 0.25kg / hnab | 60 Si2MnA |
| SIB 309A | Ø19 | 0.85kg / hnab | 60 Si2MnA |
| PAB 401 | Ø20 | 0.97kg / pc | 60 Si2MnA |
| PAB 415 | Ø20 | 0.95kg / pcs | 60 Si2MnA |
| PAB 601A | Ø20 | 1.03kg / hnab | 38 ib 7 |
| SKL 1 | Ø13 | 0.48kg / hnab | 60 Si2CrA |
| SKL 3 | Ø13 | 0.48kg / hnab | 60 Si2CrA |
| SKL 12 | Ø13 | 0.53kg / pcs | 38 ib 7 |
| SKL 14 | Ø13 | 0.53kg / pcs | 60 Si2MnA |
| Tshwj xeeb Rail Clip | Ø13 | 0.48kg / hnab | 60 Si2MnA |
| Russia Rail Clip | Ø18 | 0.58kg / pcs | 60 Si2MnA |
| Deenik Clip | Ø25 | 0.49-0.68kg / pc | 60 Si2MnA |
| Ib leeg Anti- | Ø20 | 0.25kg / hnab | 60 Si2MnA |
| Tub sab |
Yog tias koj muaj cov cai tshwj xeeb rau qhov ntev lossis cov ntaub ntawv muaj zog dua, thovtiv tauj pebrau tshwj xeeb kev cai ntau lawm.
