Kev sib tw khi phaj, tseem hu ua bigplate lossis tsuas yog phaj steel, yog cov hlau nplaum steel uas siv ntawm cov ciav hlau ntawm Flanged T Hlau Railers. Kev khiav khi phaj nce cov kabmob thaj chaw thiab tuav cov hlau hlau los kho cov kev tsheb ciav hlau kho kom raug. Lawv tau fastened rau ntoo railway sleepers los ntawm txoj kevRail SpikeslossisTaug Boltslos ntawm cov qhov hauv kev sib tw khi daim hlau.
Khi daim hlau rau kpo fastening tshuab
Ib lub tsheb ciav hlau phaj yog qhov tseem ceeb hauvKPO Fastening SystemTxhawm rau txhawb txoj kev tsheb ciav hlau thiab txhim kho tag nrho cov khoom siv nrawm nrawm, khi rau ntawm kev tsheb nqaj hlau nrog cov tsheb ciav hlau bolts thiabtsheb ciav hlau trailroid spikes.
KPO Rail Siv Kev Kho Mob

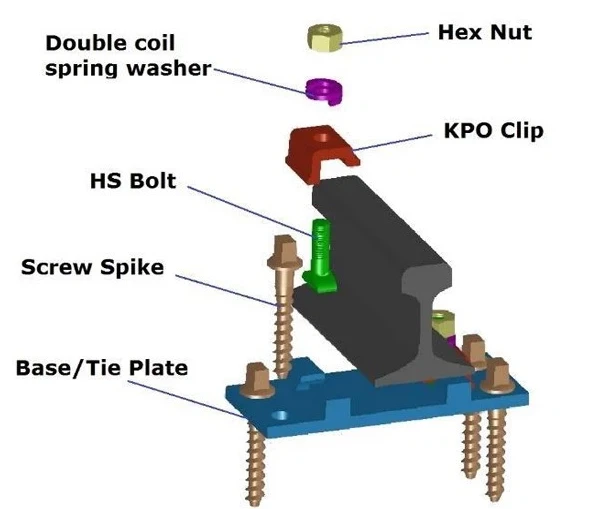

| KPO Fastening System | ||||||
| KPO Clamp | Ntsia Hlau Ntaus | HS Bolt | Hex Txiv Ntseej | Lub Caij Nplooj Hlav Washer | Lub hauv paus phaj | |
| Tej daim yuav tsum tau | 4 | 8 | 4 | 4 | 8 | 2 |
| Khoom | Q235 | Qeb 4.6: Q235 Qib 5.6: 35 # Qib 8.8: 45 # | Qib 2012.6: Q235 Qib.6: 35 # Qib.8: 45 # | Qeb 5: 35 # Qib 8: 45 # | 65mn | Casting Hlau Qt500-7, Qt450-10, lossis Forging Cov Hlau Roj Hlau lossis Cov Hlau Nyias Hlau; |
| Hom; | KPO3, KPO6, KPO9 | M24X150mm M24 x160mm M24 X180mm | HS26, HS32 | Raws li tau txiav txim | Raws li tau txiav txim | Uic54, Uic60, 50kg Rail, 60kg Rail, S49 hauv kev txiav txim loj |
| Tsab ntawv | Txheem: DIN5906 | Txheem: Iso898-1, Uic864-1 thiab NF F500-50 | Inch: 22mm lossis 24 hli. Ntev: 55mm, 65mm, 75mm, 90mm | Txheem: DIN985 | Txheem: Uic864-3 | Txheem: Uic864-6 |
Raws li ib tug kws tshaj lij kev ua lag luam thiab cov tuam txhab ua lag luam txawv teb chaws tshwj xeeb hauv kev tsheb ciav hlau siab, Gnee Railway cov khoom siv rau kev lag luam ciav hlau thoob ntiaj teb. Nws cov khoom tseem ceeb suav nrog kev tsheb ciav hlau, trikes blocks, cov ris tsho sib tw, cov ntses ntses, cov ntses ntses thiab lwm yam kev tsheb ciav hlau. Rau cov lus qhia ntxaws ntxaws ntxiv, thov koj xavTiv Tauj Peb.
