Zoo Zoo Thiab Qhov Loj Ntawm Hlau Rails
(1) Lub tsheb ciav hlau yuav tsum ncaj nraim tsis muaj qhov tseem ceeb khoov lossis twisting. Lub zos khoov thiab torsion ntawm lub teeb thiab hnyav rails thiab lawv kho deformation, raws li zoo raws li inclination ntawm rail kawg lub ntsej muag, thiab lwm yam, yuav tsum tsis txhob tshaj cov qauv.
(2) Qhov saum npoo ntawm txoj hlua yuav tsum huv thiab du, tsis muaj qhov tsis xws luag xws li tawg, nti, khawb, thiab lwm yam.; Qhov kawg saum npoo yuav tsum tsis muaj cov cim qhia ntawm qhov shrinkage thiab interlayers. Qhov tso cai tsis xws luag nyob rau hauv tag nrho saum npoo ntawm lub teeb thiab hnyav rails thiab cov degree ntawm lawv geometric ntau yuav tsum tsis txhob tshaj cov kev cai ntawm tus qauv.
Puas yog txoj kev tsheb ciav hlau ntawm hlau lossis hlau?
Niaj hnub nimno khiav feem ntau yog siv kub dovhlauNrog ib tug profile ntawm ib tug asymmetrical rounded I-beam. Tsis zoo li qee qhov kev siv hlau thiab hlau, railway rails muaj kev ntxhov siab heev thiab yuav tsum tau ua los ntawm cov hlau zoo heev.

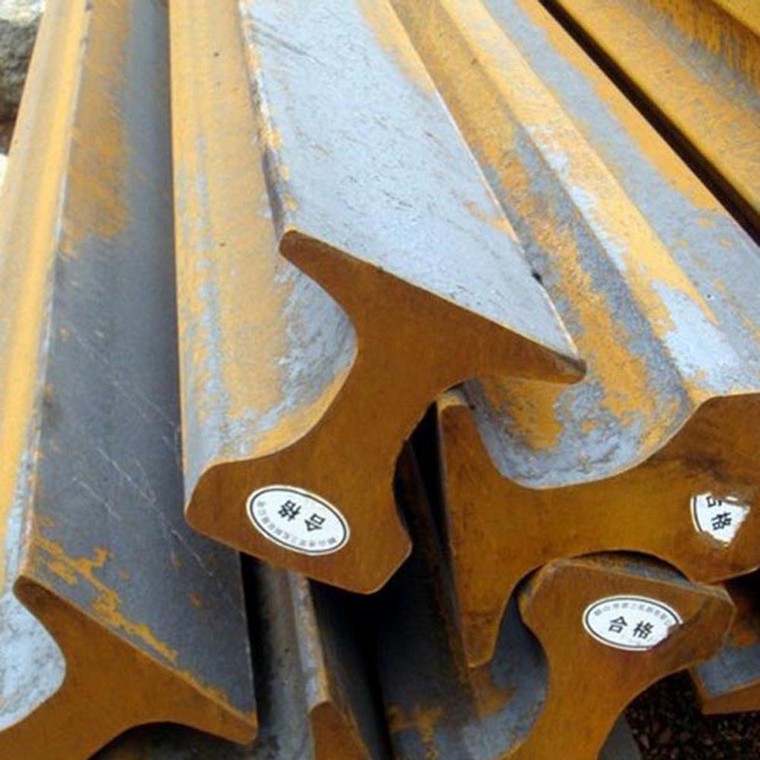

Steel rail kuj hu ua rail rail, railway rail. Steel Rail raws li qhov tseem ceeb ntawm txoj kev tsheb ciav hlau.it yog ib qho kev ncaj ncees ntawm cov qauv engineering, nws yog tsim los ntawm steel rail, sleeper, connectingparts (rail accessories)
- Warranty: 2 Xyoos
- Qauv: GB Model
- Daim ntawv pov thawj: CE SGSISO9001.SASO
- Advantage: Cov Tshuag Loj
Sab saum toj Steel Rail Supplier-GNEE
Parameter ntawm Lub Teeb Rail Steel
|
Txheem: GB 11264-89 |
||||||||||
|
qhov loj |
Lub taub hau (mm) |
Qhov siab (mm) |
Hauv qab (mm) |
Web (mm) |
Qhov hnyav (kg / m) |
Khoom siv (mm) |
Ntev (mm) |
|||
|
GB 6 KG |
25.4 |
50.8 |
50.8 |
4.76 |
5.98 |
Q235B |
6-12 |
|||
|
wb 9kg |
32.1 |
63.5 |
63.5 |
5.9 |
8.94 |
Q235B |
6-12 |
|||
|
GB 12 KG |
38.1 |
69.85 |
69.85 |
7.54 |
12.2 |
Q235B/55Q |
6-12 |
|||
|
GB 15 KG |
42.86 |
79.37 |
79.37 |
8.33 |
15.2 |
Q235B/55Q |
6-12 |
|||
|
GB 22 KG |
50.3 |
93.66 |
93.66 |
10.72 |
22.3 |
Q235B/55Q |
6-12 |
|||
|
GB 30 KG |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
Q235B/55Q |
6-12 |
|||
|
Qauv: YB222-63 |
||||||||||
|
8 KG |
25 |
65 |
54 |
7 |
8.42 |
Q235B |
6-12 |
|||
|
18 KG |
40 |
90 |
80 |
10 |
18.06 |
Q235B/55Q |
6-12 |
|||
|
24 KG |
51 |
107 |
92 |
10.9 |
24.46 |
Q235B/55Q |
6-12 |
|||
Parameter ntawm 38kg 43kg 50kg 60kg Heavy Railway Steel Rail
|
Txheem: GB 2585-2007 |
|||||||
|
Qauv |
Lub taub hau dav |
Rail qhov siab |
Web Thickness |
Hauv qab Dav |
Qhov hnyav |
Khoom siv |
Rail ntev |
|
38kg / m |
68mm ib |
134mm ib |
13 hli |
114mm ib |
38.733 kg/m |
U71Mn/U71 / 45 Mn |
12,12.5m |
|
43kg / m |
70 hli |
140 hli |
14.5mm 3 |
114mm ib |
44.653 kg/m |
U71Mn/U71 / 45 Mn |
12,12.5m |
|
50kg / m |
70 hli |
152mm ib |
15.5mm ib |
132mm ib |
51.514 kg/m |
U71Mn/U71 / 45 Mn |
12,12.5m |
|
60kg / m |
73mm ib |
1 76mm |
16.5mm 3 |
150 hli |
60kg / m |
U71Mn/U71 / 45 Mn |
12,12.5m |

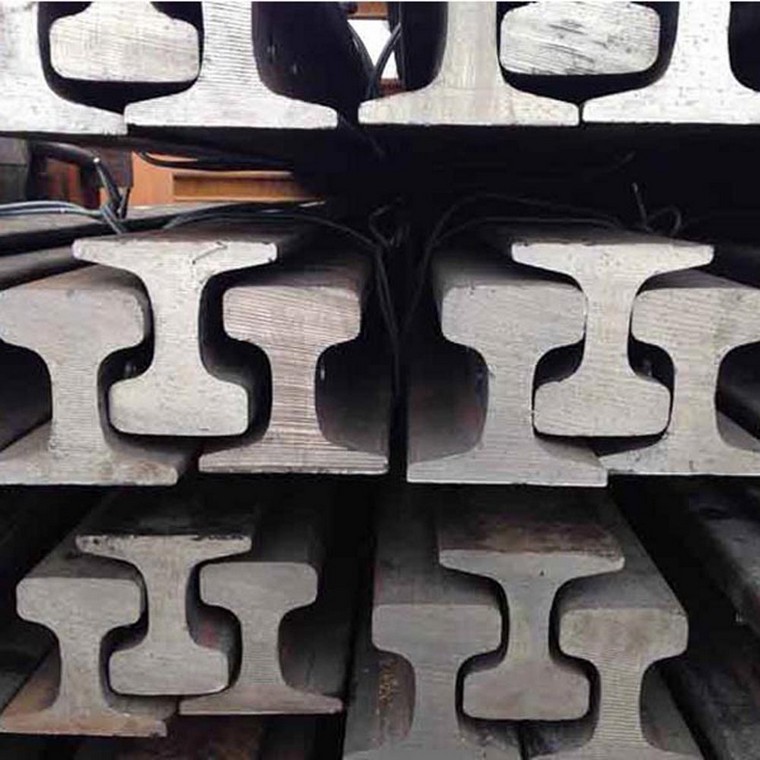

Parameter ntawm QU70 QU80 QU100 QU120 Steel Rail Crane Heavy Rail
|
Hom |
Loj mm AXBXCXD |
Qhov hnyav (kg / m) |
Ntev (m) |
|
qw 70 |
120x120x70x28 |
52.80 |
9/9.5/1010.5/11/11.512/12..5m |
|
qw 80 |
130x130x80x32 |
63.69 |
9/9.5/1010.5/11/11.512/12..5m |
|
QU 100 |
150x150x100x38 |
88.96 |
9/9.5/1010.5/11/11.512/12..5m |
|
qw 120 |
170x170x120x44 |
118.10 |
9/9.5/1010.5/11/11.512/12..5m |
