Pandrol E clip yog dab tsi?

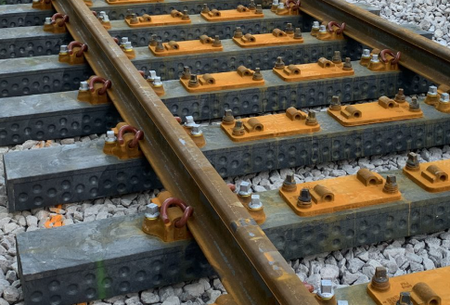

APandrol E-clipyog tus kheej -tensioning, caij nplooj ntoos hlav steel railway fastener uas tuav lub tsheb ciav hlau mus rau ib tug pw tsaug zog, siv nyob rau hauv ob qho tib si ballasted thiab slab lem. Nws yog ntau yam thiab ruaj khov uas tsim kom muaj lub zog clamping tsis tu ncua, thiab nws muaj cov hlua khi hlua khi, lub xub pwg nyom, lub tsheb ciav hlau, thiab cov insulators.
E rail clip muab txoj kev tsheb ciav hlau zoo thiab ruaj khov nyob rau hauv kev ua haujlwm hnyav tshaj plaws, uas txuas ntxiv lub neej ntawm txoj kev tsheb ciav hlau. Feem ntau, e rail clips muaj nyob ntawm thaj tsam ntawm 18mm txog 23mm txoj kab uas hla. Rail-e clip feem ntau yog ua los ntawm lub caij nplooj ntoos hlav hlau. Raws li hom tseem ceeb ntawm elastic rail clips, E-rail clips muaj ntau qhov ntau thiab tsawg, xws li E1, E2, E3, E1609, E1809, E1817, E2001, E2006, E2009, E2055, E2056, thiab lwm yam.
| Qauv | Txoj kab uas hla | Qhov hnyav | Khoom siv |
| Hom III | Ø18 | 0.80kg / hnab | 60 Si2MnA |
| E1609 | Ø16 | 0.43 kg / pcs | 60 Si2MnA |
| E1809 | Ø20 | 0.61kg / pcs | 60 Si2MnA |
| E1813 | Ø18 | 0.62kg / pcs | 60 Si2MnA |
| E2001 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2007 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2009 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2039 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2055 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2056 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| E2063 | Ø20 | 0.80kg / hnab | 60 Si2MnA |
| PR85 Rail Clip | Ø13 | 0.25kg / hnab | 60 Si2MnA |
| SIB 309A | Ø19 | 0.85kg / hnab | 60 Si2MnA |
| PAB 401 | Ø20 | 0.97kg / pc | 60 Si2MnA |
| PAB 415 | Ø20 | 0.95kg / hnab | 60 Si2MnA |
| PAB 601A | Ø20 | 1.03kg / hnab | 38 ib 7 |
| SKL 1 | Ø13 | 0.48kg / hnab | 60 Si2CrA |
| SKL 3 | Ø13 | 0.48kg / hnab | 60 Si2CrA |
| SKL 12 | Ø13 | 0.53kg / pcs | 38 ib 7 |
| SKL 14 | Ø13 | 0.53kg / pcs | 60 Si2MnA |
| Tshwj xeeb Rail Clip | Ø13 | 0.48kg / hnab | 60 Si2MnA |
| Russia Rail Clip | Ø18 | 0.58kg / hnab | 60 Si2MnA |
| Deenik Clip | Ø25 | 0.49-0.68kg / pc | 60 Si2MnA |
| Ib leeg Anti- | Ø20 | 0.25kg / hnab | 60 Si2MnA |
| Tub sab |
Kev tsim cov txheej txheem ntawm Elastic Rail Clips
Rail clip processing cov txheej txheem suav nrog:
- Kev yuav khoom raw
- Txiav
- Cua sov rau forging kub
- tsim
- Hardening
- Tempering
- Kev kho saum npoo
- Kev tshuaj xyuas -Packing
GNEE RAIL khoom siv E-clips, PR clips, SKL clips, Russia rail clip, Deenik clip, Nabla caij nplooj ntoos hlav hniav, KPO rail calmp, gantrex rail clips, ceev clip, crane rail clips thiab lwm yam tshwj xeeb clips rau rails. Peb muaj proffesional ntau lawm cline tsim thiab manufacture txheem rail clips los yog nonstandard clips.zoo siab txais tos.
