Dab tsi yog qhov zoo ntawm kev siv A65 Steel Crane Rail?
Thawj qhov zoo ntawm kev sivDIN 536 A65 crane railsuav nrog nws qhov tshwj xeeb ntawm kev ruaj ntseg sab nraud, ua kom zoo tshaj qhov kev faib khoom rau cov tshuab hnyav, thiab qis -profile tsim uas ua kom qhov chaw ua haujlwm ntsug. Vim nws yog engineered nrog lub hauv paus loj dua (175 hli) txheeb ze rau nws qhov siab (75mm ua), A65 profile tiv thaiv tilting thiab taug qab kev hloov pauv nyob rau hauv lub zog kab rov tav uas tsim los ntawm crane braking thiab acceleration.
Qhov no geometry tshwj xeeb, ua ke nrog siab - cov ntaub ntawv muaj zog zoo li900A, xyuas kom meej tias txoj kev tsheb ciav hlau tuaj yeem txhawb nqa cov tsheb thauj khoom hnyav thaum tuav tus du, hnav- tiv taus nto rau ntau xyoo ntawm kev lag luam.
| Feature | Kev Pabcuam | Muaj kev cuam tshuam |
| Kev ruaj ntseg zoo dua | Squat tsim nrog qhov nruab nrab ntawm lub ntiajteb txawj nqus. | Tawm tsam sab-thrust rog; ua kom ruaj ntseg anchoring rau cov kab hluav taws xob khiav. |
| Load Distribution | Nthuav dav175 hlipuag flange. | Tshaj siab tshaj qhov chaw loj dua; tiv thaiv lub hauv paus crushing thiab beam qaug zog. |
| Durability | High carbon thiab manganese cov ntsiab lus (900A). | High deg hardness resists "mushrooming" thiab yas deformation. |
| Space Efficiency | Tsawg profile qhov siab (75mm ua). | Zoo tagnrho rau cov chaw uas tsis muaj nyiaj siv ua haujlwm tshem tawm; enables compact runway designs. |
GNEE RAILleverages integrated manufacturing kev txawj ntse kom ua kom tau qhov zoo tshaj plaws los ntawm kev ua kom txhua qhov A65 profile tshaj qhov seem thiab metallurgical cov cai ntawm European DIN 536 tus qauv. Peb cov txheej txheem ntau lawm siv lub tshuab nqus tsev degassing thiab precision dov kom tshem tawm cov teeb meem sab hauv, ua rau A65 Steel Crane Rail nrog kev qaug zog zoo dua.
Dab tsi yog qhov tshwj xeeb ntawm Crane Rail A65 DIN536?

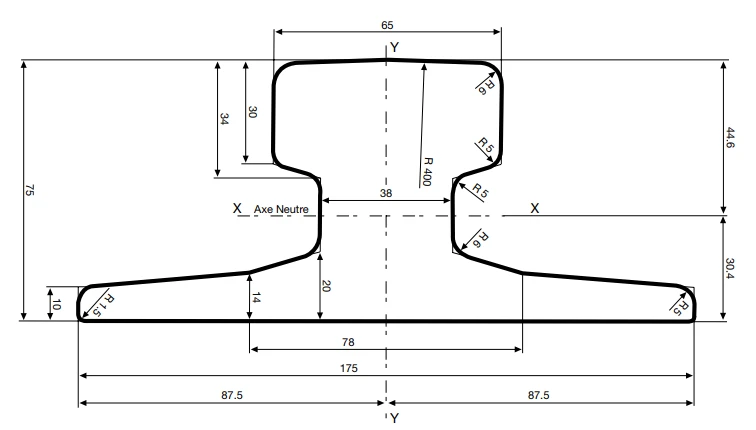

Crane Rail A65 DIN536 yog ib qho tshwj xeeb, siab - lub zog tsheb ciav hlau ua raws li DIN 536 P1: 1991, featuring a65mm ibtaub hau dav,75mm uaqhov siab, thiab175 hlihauv qab dav, hnyav43.1 kg/m. Feem ntau yog ua los ntawm U71Mn lossis 50Mn steel, nws yog tsim los rau cov nyiaj siv ua haujlwm ruaj khov thiab chaw nres nkoj cranes. Feem ntau siv xws li gantry thiab crane runway systems.
| Parameter | Tus nqi | Ua siab ntev |
|---|---|---|
| Rail qhov siab (H) | 75mm ua | ± 1 hli |
| Lub hauv paus dav (B) | 175 hli | ± 2 hli |
| Lub taub hau dav (C) | 65mm ib | ± 1 hli |
| Web thickness (E) | 38mm ib | – |
| Hla - cheeb tsam | 54,90m wb | – |
| Mass ib 'meter' | 43.10 kg/m² | – |
| Txheem ntev | 12 m | – |
| Kev cai ntev ntau yam | 5–25 m | Los ntawm kev thov |
Dab tsi yog daim ntawv thov ntawm A65 Steel Crane Rail?
A65 steel crane rail (feem ntau ua raws li tus qauv DIN 536) yog qhov nruab nrab - lub luag haujlwm rail dav siv rau cov nyiaj siv ua haujlwm cranes, portal cranes, thiab automated stacking systems. Vim nws lub taub hau dav 65 hli, 75 hli qhov siab, thiab muaj zog 43.1 kg / m hnyav, nws yog tsim los rau nruab nrab mus rau siab-ntau zaus nqa, muab kev taw qhia lub log ruaj khov hauv kev lag luam.
1. Muaj Chaw Tsim Khoom & Warehouses
- Nyiaj siv ua haujlwm cranes:Siv rau ib leeg thiab ob -girder overhead crane khiav hauv kev cob qhia, steel fabrication chaw, thiab cov chav tsev.
- Automated Storage/Retrieval Systems:Zoo tagnrho rau stacker cranes nyob rau hauv warehouses, qhov precision thiab zoo ib yam mus txawv tebchaws yog tseem ceeb heev.
- Manufacturing Assembly Lines:Nruab rau crane trolleys tuav cov khoom hauv tsheb, tshuab hnyav, thiab kev lag luam aerospace.
2. Chaw nres nkoj, Docks & Terminals
- Gantry Crane:Feem ntau siv nyob rau hauv chaw nres nkoj terminals, thawv tuav, thiab shipyards, feem ntau tswj lub teeb- mus rau - nruab nrab gantry systems.
- Shipyard Logistics:Txhawb nqa cranes txav cov khoom hnyav hauv thaj chaw shipbuilding.
3. Mining thiab Extraction
- Kev kho cov khoom siv ntau:Nruab rau cranes, stacker-reclaimers, thiab loader systems nyob rau hauv industrial thiab mining ib puag ncig kom txav cov ntaub ntawv zoo.
- Thauj Networks:Siv nyob rau hauv tshwj xeeb mining thauj rail systems.
4. Heavy-Lub luag haujlwm muaj kev ua haujlwm
- Steel Mills & Foundries:Siv rau cranes tuav molten hlau thiab hnyav machinery, qhov kub thiab corrosion kuj yog tsim nyog.
- Fais fab nroj tsuag:Muab kev ruaj ntseg taug qab rau cov nyiaj siv ua haujlwm cranes siv rau kev nqa lub tshuab hluav taws xob, turbines, thiab cov khoom loj.
FAQ
- Vim li cas lub hauv paus dav ntawm A65 profile yog qhov zoo dua?
Qhov dav ntawm 175 hli muab cov hneev taw loj uas ua kom ruaj khov ntawm txoj kev tsheb ciav hlau tiv thaiv sab nraud thiab tiv thaiv txoj kev tsheb ciav hlau los ntawm kev txiav los yog ua rau cov qauv kev txhawb nqa, txuas ntxiv lub neej ntawm tag nrho cov kev khiav.
- Puas siv A65 rail txo suab nrov hauv lub Hoobkas?
Yog, tshwj xeeb tshaj yog thaum siv nrog Rubber Pads. A65 txoj kev tsheb ciav hlau yog tsim los rau kev txhawb nqa tas mus li, thiab qhov dampening muab los ntawm cov ntaub qhwv thiab cov khoom siv tau zoo txo cov suab nrov thiab kev co tsim los ntawm kev txav cranes.
- A65 rail txhim kho crane log lub neej li cas?
Los ntawm kev muab qhov sib xws, siab -hardness taub hau profile thiab cov kev sib raug zoo, A65 profile rail txo kev sib txhuam thiab flange hnav ntawm lub crane log, ua rau txo nqi kho rau cov khoom dov.
- Puas yog A65 txoj kev tsheb ciav hlau zoo dua li kev tsheb ciav hlau rau cov nyiaj siv ua haujlwm cranes?
kiag li. Tshwj xeeb A-series profiles zoo li A65 yog qhov ruaj khov thiab zoo dua ntawm kev tuav cov dynamic lateral thrusts ntawm crane dua siab dua, nqaim txoj kev tsheb ciav hlau zoo li UIC 60.
- Dab tsi yog qhov txiaj ntsig ntawm qib 900A rau A65 rail?
900A qib A65 Rail Material muaj lub zog tensile tsawg kawg yog 880 N / mm², muab kev tiv thaiv zoo tshaj plaws rau kev sib tsoo thiab hnav piv rau qib 700 tus qauv, ua rau nws zoo tagnrho rau siab - siv cov ntawv thov kev lag luam.
Thov Tus Nqi Kawg
GNEE RAILmuab cov kev txawj ntse thiab siab - cov khoom zoo uas xav tau los xyuas kom meej tias koj qhov project ua tiav cov txiaj ntsig no. Peb muab ntau yam ntawm cov ntsia hlau thiab sib txuas fastening accessories los muab kev daws teeb meem rau koj qhov chaw.Hu rau GNEE RAILkom tau txais kev daws teeb meem thiab cov ncauj lus qhia ntxaws ntxaws rau koj qhov project A65 Crane Rail. Peb pab neeg tau npaj txhij los muab rau koj nrog A65 Rail Drawings thiab cov ntaub ntawv pov thawj uas yuav tsum tau ua kom muaj kev nyab xeeb, ua haujlwm tau zoo, thiab ntev ntev - kev teeb tsa ntev uas ua tau raws li cov qauv thoob ntiaj teb siab tshaj plaws.
